IBC Tote Stand Woodworking Plans – Build a Strong Gravity Water Tank Stand

These woodworking plans show you how to build a strong wooden stand designed to safely support a 275 gallon IBC tote water tank.

Raising the tank creates natural gravity pressure, making it ideal for rainwater harvesting systems, irrigation setups, RV water supply, and off-grid water storage.

Ready to Build a Strong Water Tank Stand?

These woodworking plans walk you step-by-step through building a heavy-duty IBC tote stand using standard lumber and simple joinery.

If you want a reliable gravity-fed water setup without guessing how to support over 2,000 lbs safely, this plan shows you exactly how to build it.

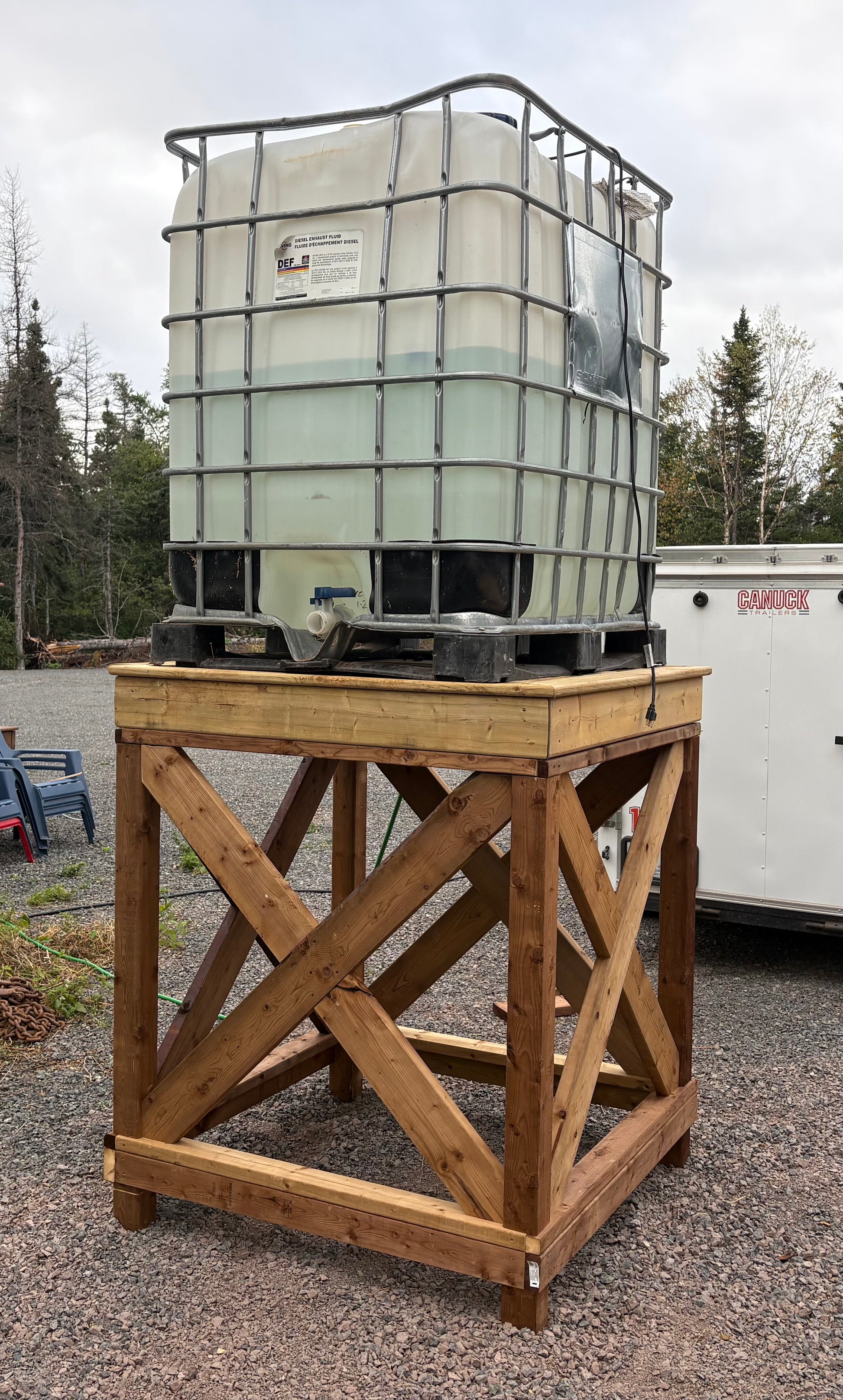

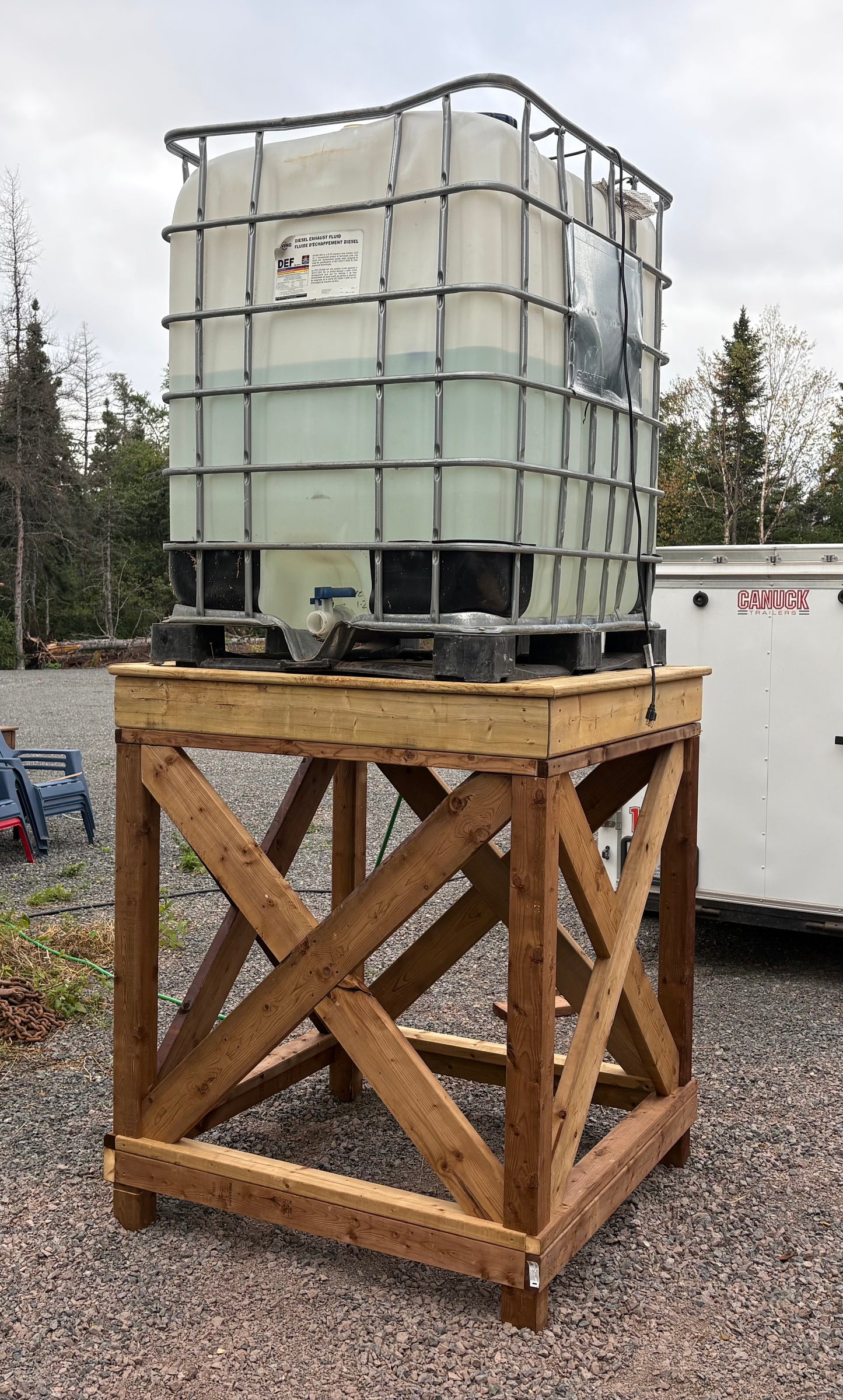

This design was originally built for a campground where water is delivered by truck and stored in IBC totes. Elevating the tank allows gravity to assist an RV water pump when the water source is located too far away. The result is a simple and reliable solution that improves water flow without complex equipment.

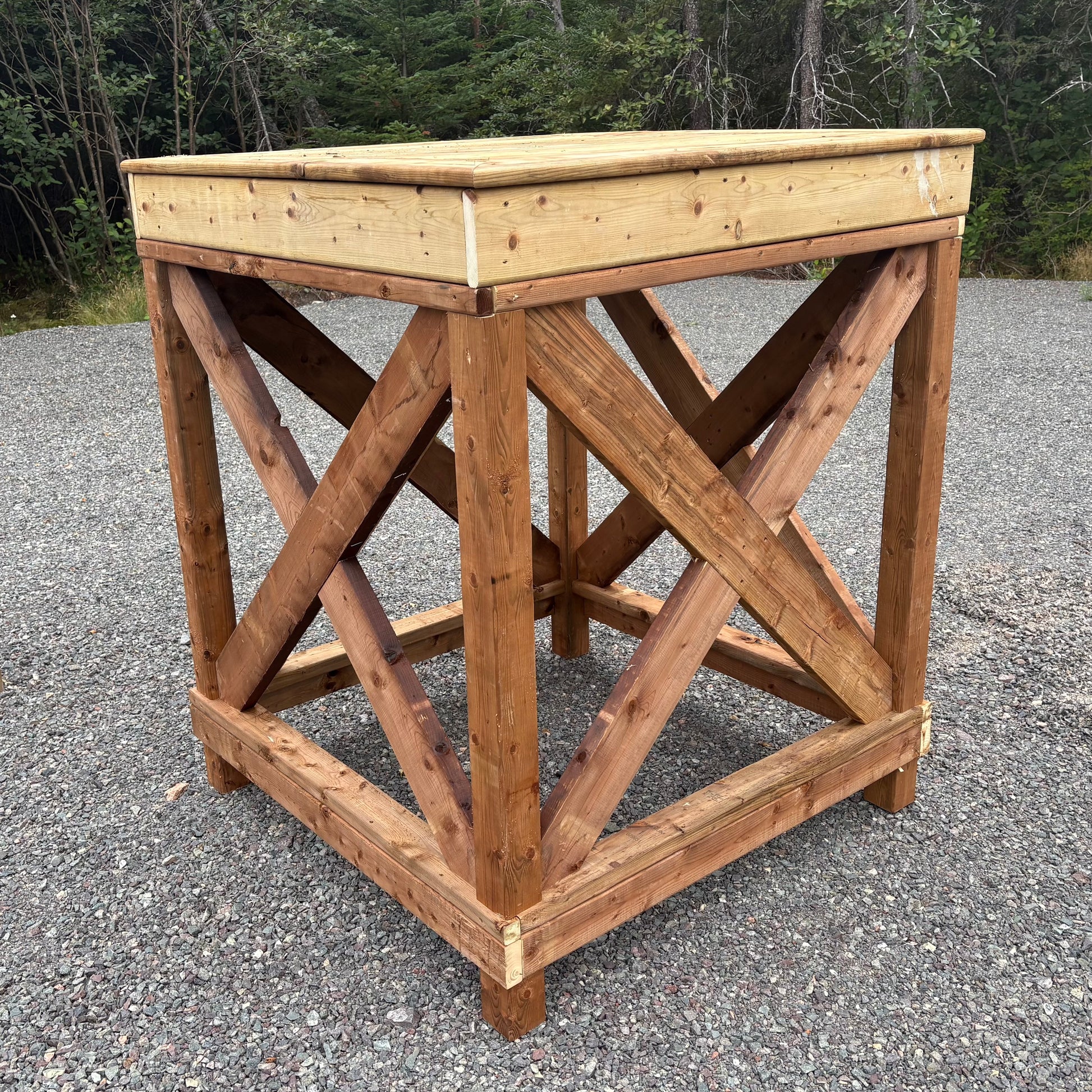

Strong and Stable Structural Design

This stand was designed to support the weight of a full IBC tote (approximately 2,400 lbs when filled).

A full 275-gallon tote weighs over a ton when filled, so this design focuses on safely transferring that load directly through the structure and into the ground.

Key structural features include:

• Solid 4×4 support posts

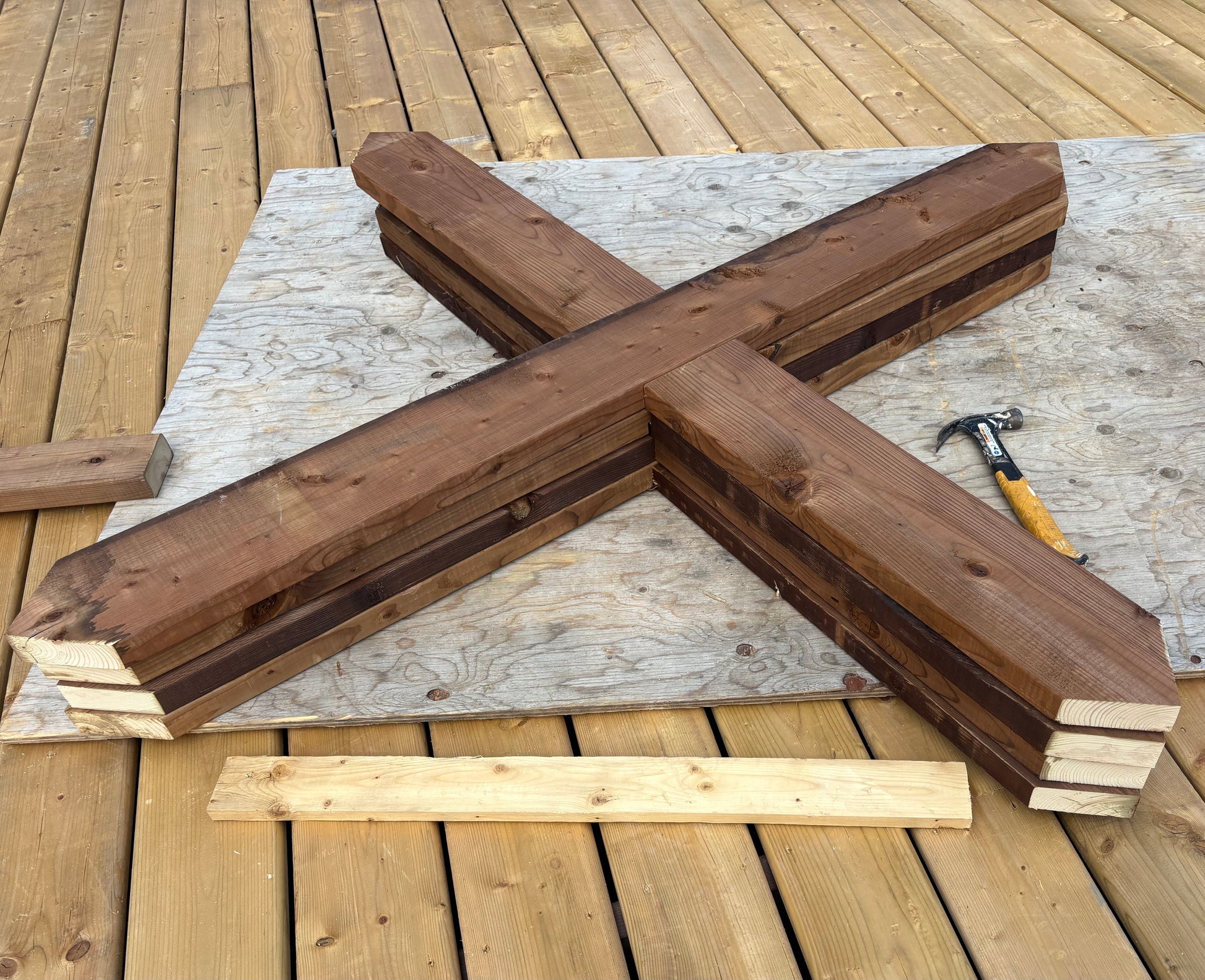

• Internal X-bracing for strength and stability

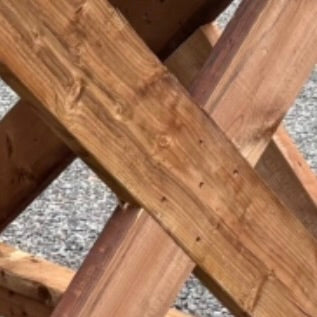

• Half-lap joint at the brace intersection
• 45° brace layout using simple square cuts
• Load transferred directly into the vertical posts

The internal cross-brace design helps prevent racking and keeps the structure stable under heavy loads.

Ideal Uses

This stand is perfect for a wide range of outdoor water storage projects:

• Rainwater harvesting systems
• Off-grid cabins and homesteads
• RV water supply setups
• Garden irrigation systems
• Remote locations where water is trucked in

This setup helps improve water flow and makes everyday use more practical without relying entirely on pumps or complex systems.

What You Will Receive

This purchase includes a downloadable PDF woodworking plan containing:

• Step-by-step building instructions
• Materials list
• Cut list
• Assembly diagrams
• Measurements for all components

The plans are designed for DIY builders using standard dimensional lumber and common shop tools.

Tools Required

• Circular saw or miter saw
• Drill / driver
• Measuring tape
• Carpenter square
• Clamps recommended

Skill Level

Intermediate DIY builder.

The project uses straightforward joinery and square cuts, making it achievable for most woodworkers with basic experience.

Instant Digital Download

This listing includes digital woodworking plans only.

No physical stand or materials are included.

After purchase you will receive an instant downloadable PDF file so you can begin building immediately.
